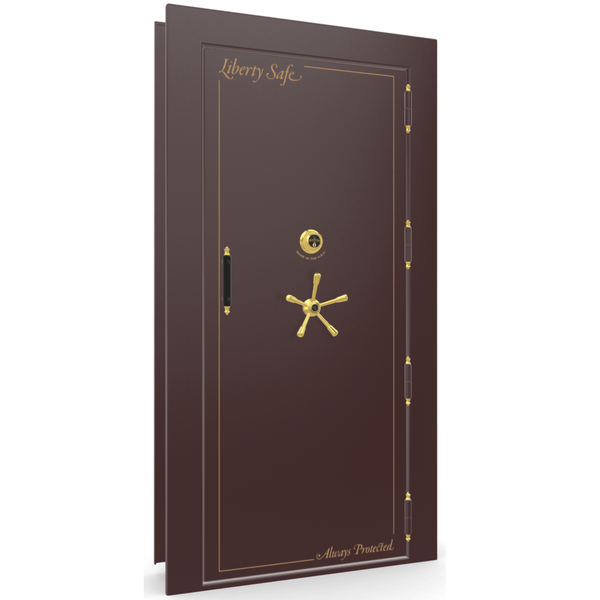

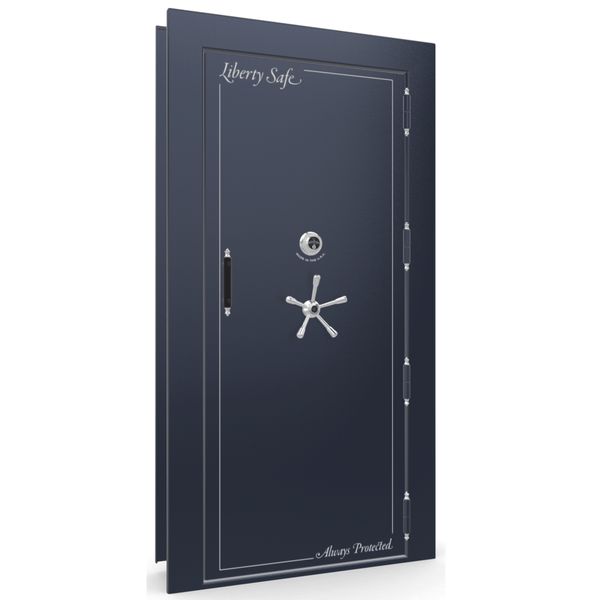

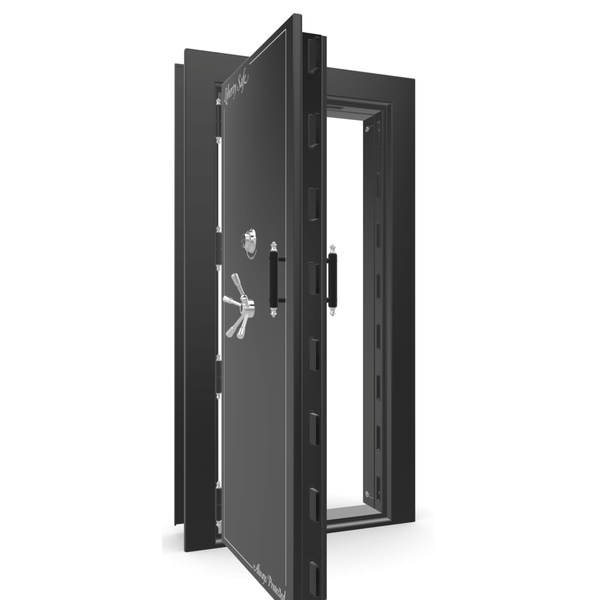

Liberty Vault Door The Beast Outswing Right Hinge with Mechanical Lock

$9,499.00

Shipping calculated at checkout

Vault Door Series
Vault Door Series
Vault Door Series
Vault Door Series
Vault Door Series

Liberty Vault Door The Beast Outswing Right Hinge with Mechanical Lock Specifications

Body: Door Defense Systems:
  • Dimensions (H x W): 79" x 34"
  • Overall dimensions may differ by 1/8" from production
  • Heavy-duty steel frame
  • Threshold Height: 1.875"
  • Weight: 1,245 lbs
  • High-end gear-driven door with ¼" steel plate
  • Internal lockout mechanism for use as a panic room
  • Slip-clutch mechanism protects against forced entry
  • Upgraded ball-bearing hardplate to protect the lock from drill attacks
  • Dual relocker locks the secure down in the event of attempted brute force entry
  • Ultra-strong locking bars defend against pry attacks, Liberty’s exclusive
Locking Bars: Lock:
  • Number of Locking Bars: 18
  • Locking Bars Thickness: 1/2"
  • Sargent and Greenleaf mechanical lock
    or SecuRam Prologic electronic lock
Exterior: Properties:
  • Colors Available: textured black, mirror black, blue gloss, bronze gloss, champagne gloss, gray charcoal, forest mist gloss, black cherry, white gloss, gray marble, emerald green, burgundy gloss
  • Lock and Handle Colors Available: chrome, black chrome, brass
  • Rough Opening Requirement (H x W x D): 81"-85" x 37"-42" x 7"-10"
  • If door is opened 90°, clearance is 27"; if opened 180°, clearance is 32"
  • Both left-hand swing and right-hand swing available
Ratings: Included:
  • Fire Rating: 2.5 hours at 1200º F (the fire protection of your vault depends on the type of walls it is built from)
  • To protect against smoke and heat Palusol heat-activated door seal expands
  • Level Security: 8
  • 5-spoke Suretight external handle available in multiple finishes
  • 3-spoke internal handle
  • Durable fabric door panel
  • Right-hand swing or left-hand swing available

Liberty reserves the right to change or update product specifications, colors and model sizes at anytime.

Made in the U.S.A. from U.S. and Global Parts.
