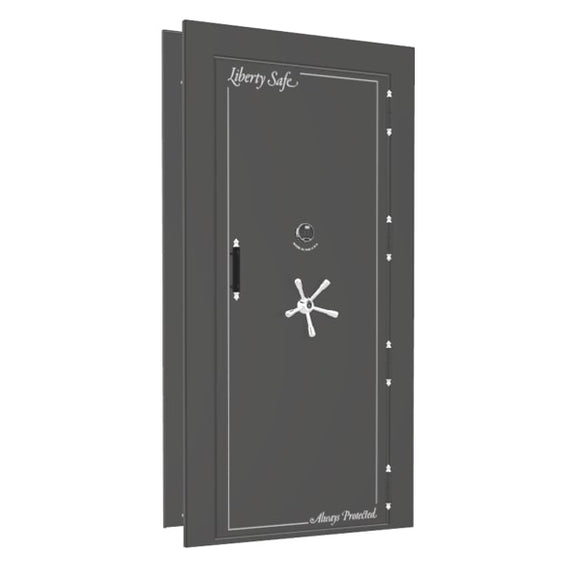

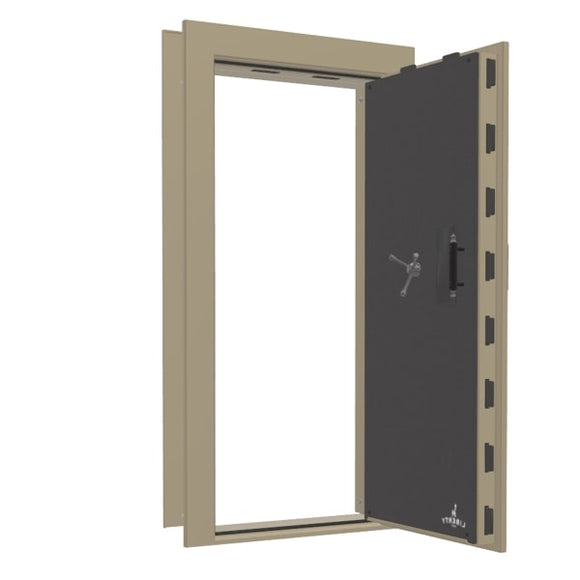

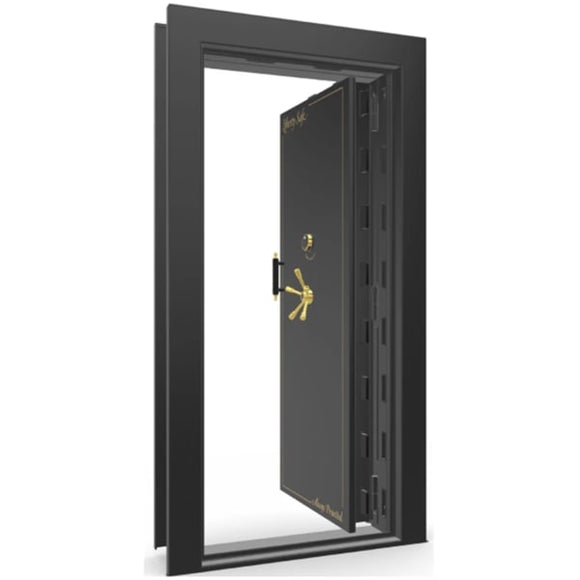

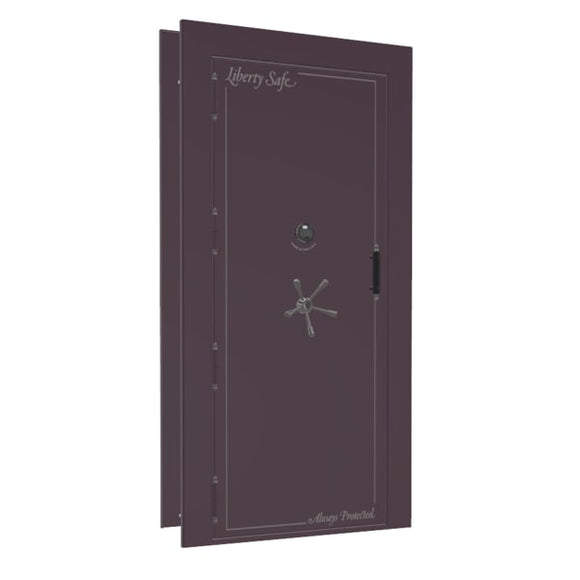

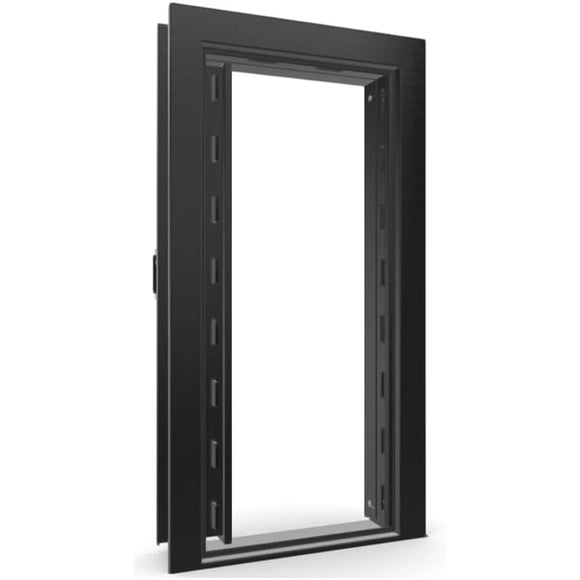

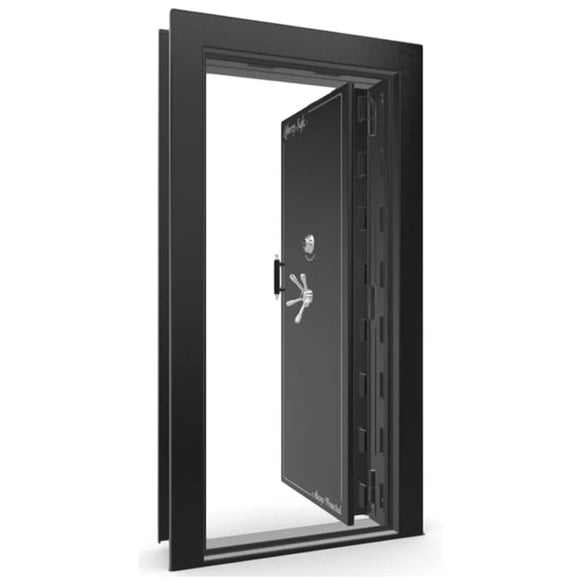

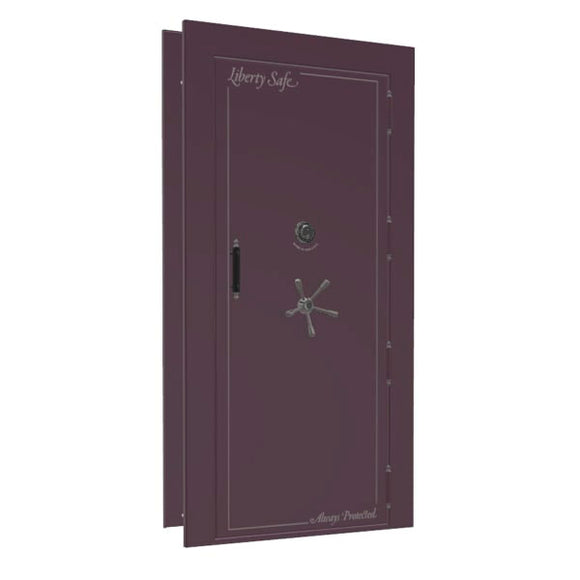

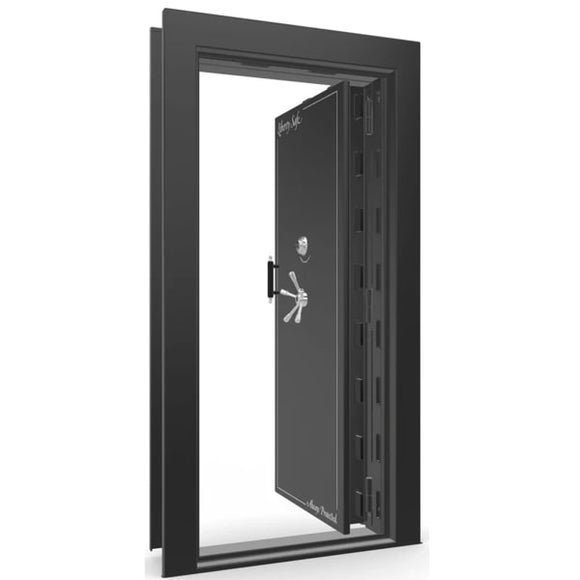

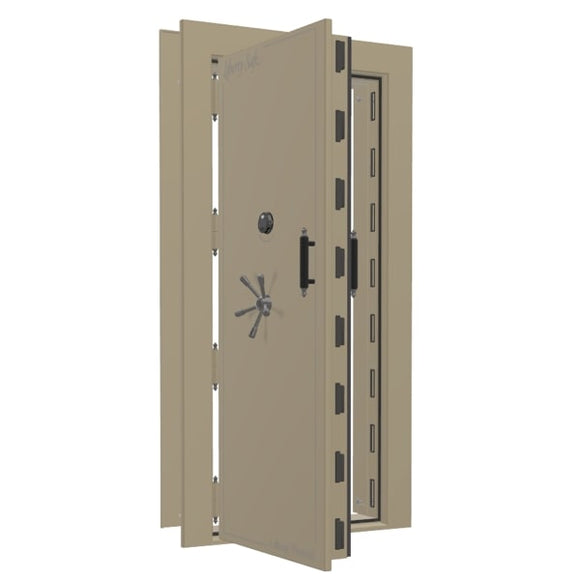

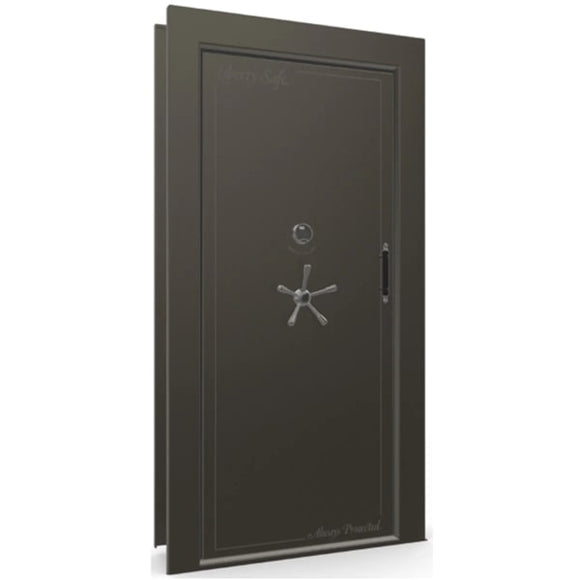

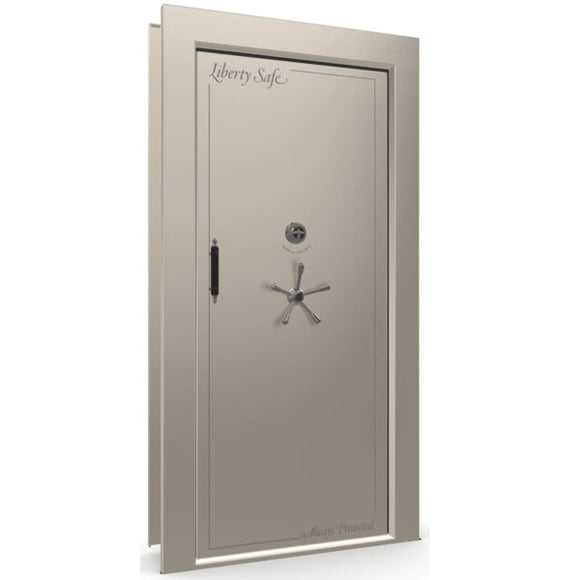

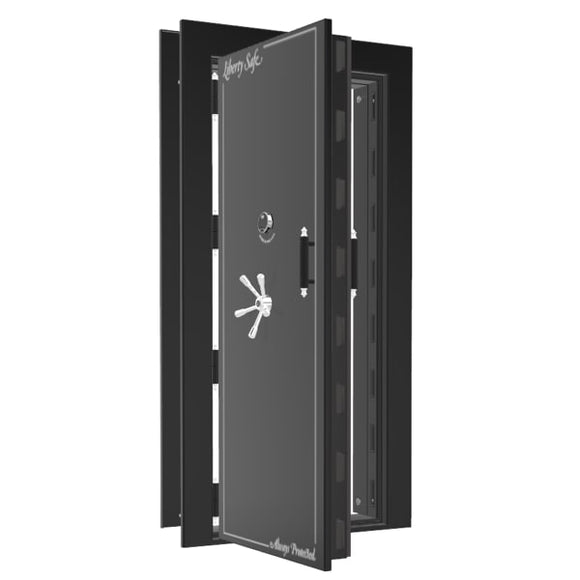

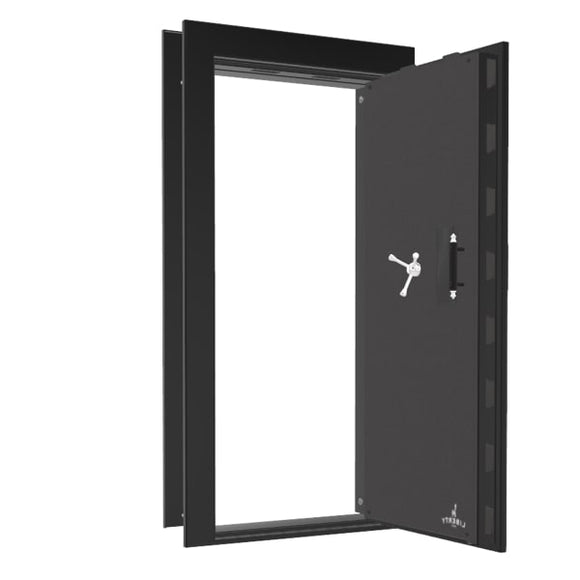

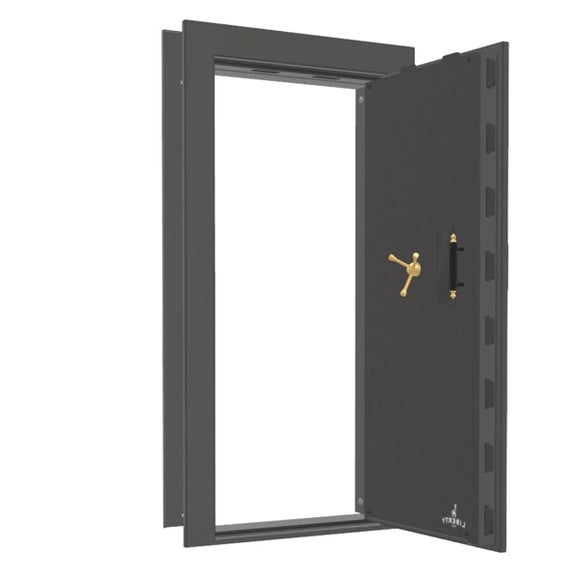

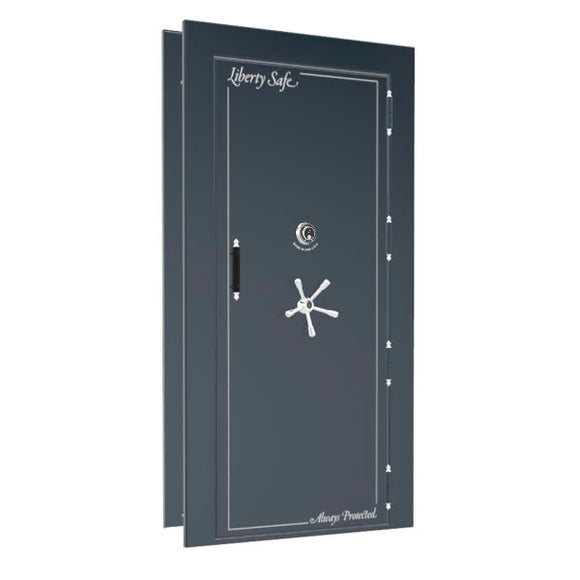

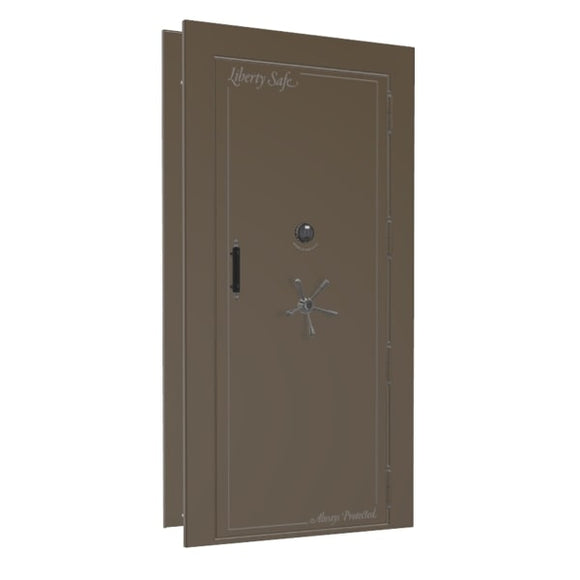

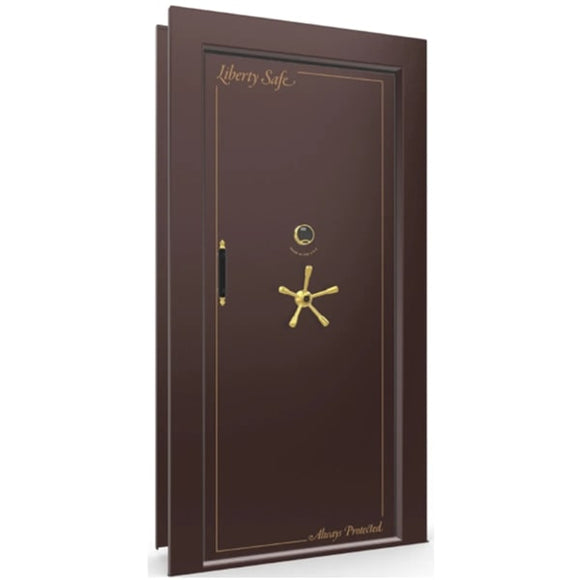

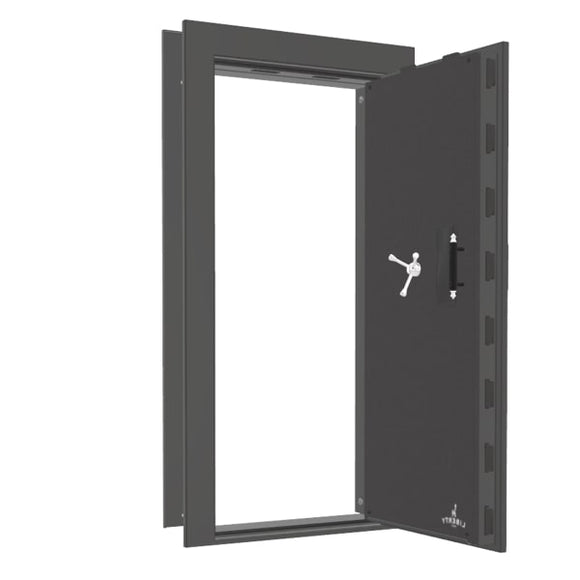

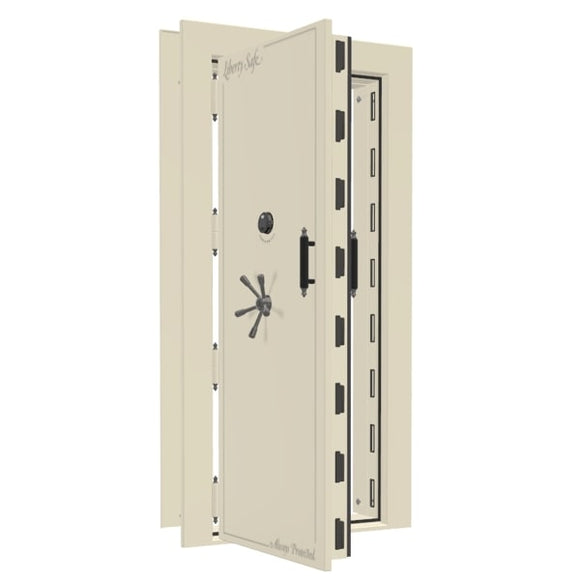

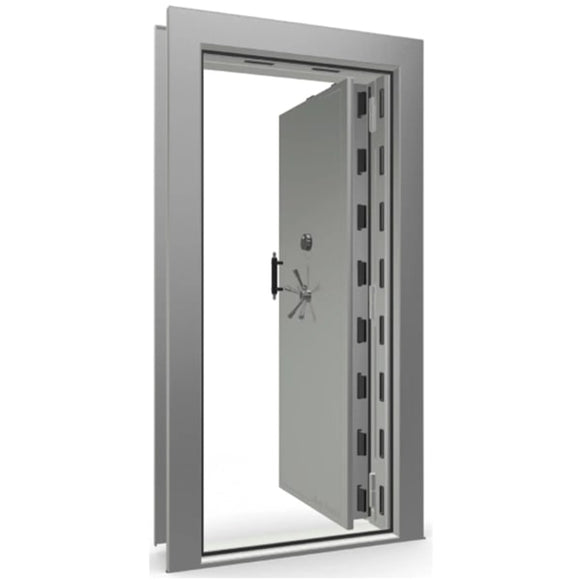

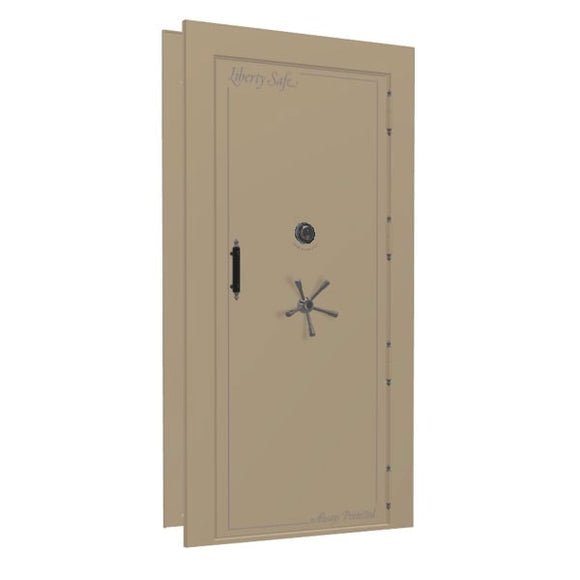

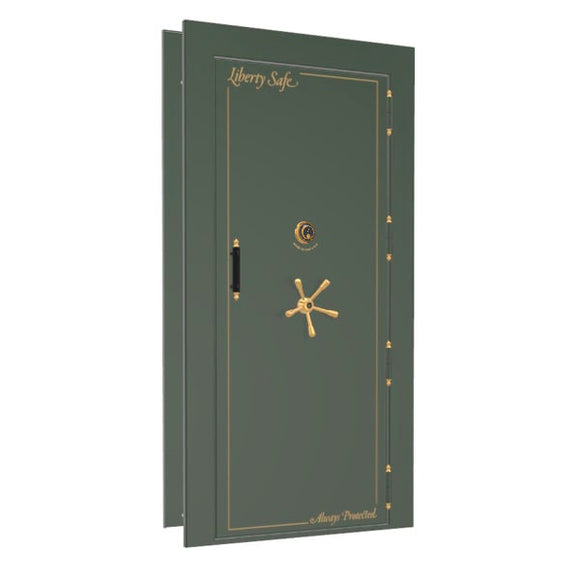

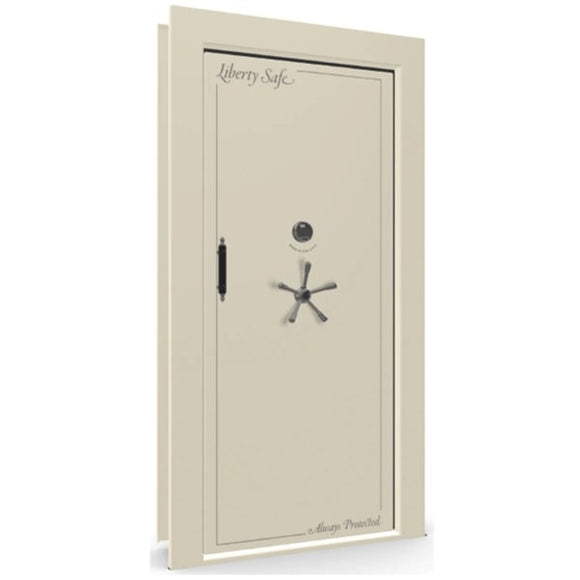

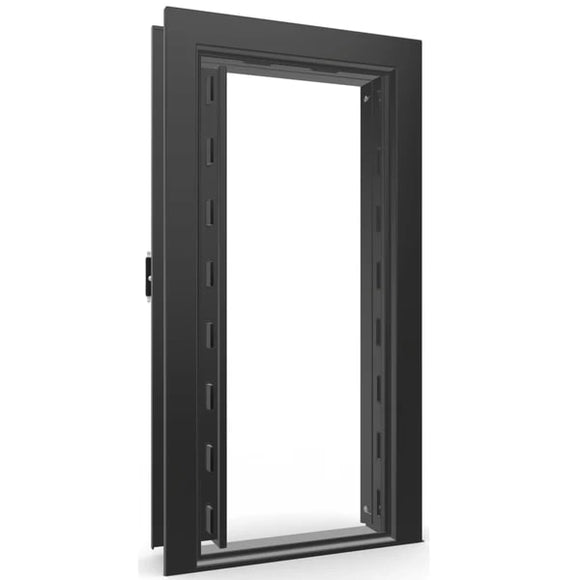

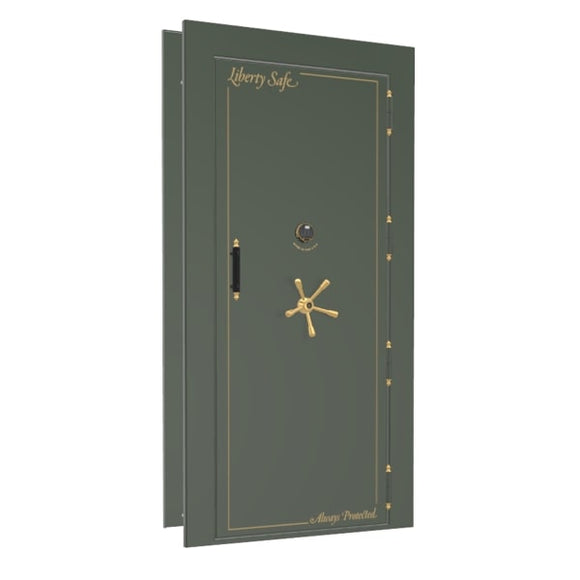

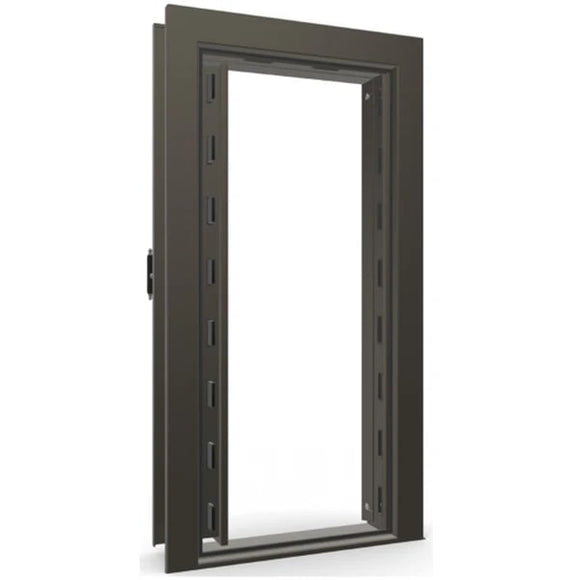

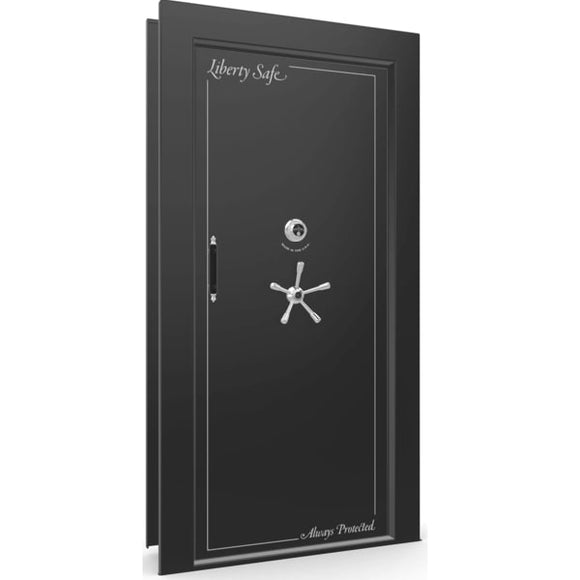

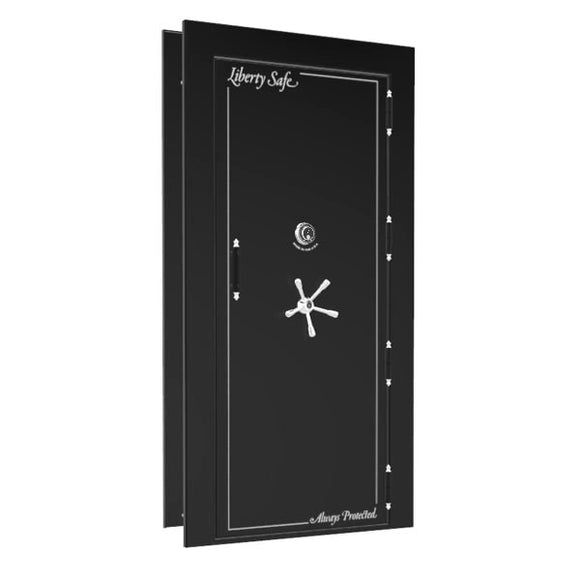

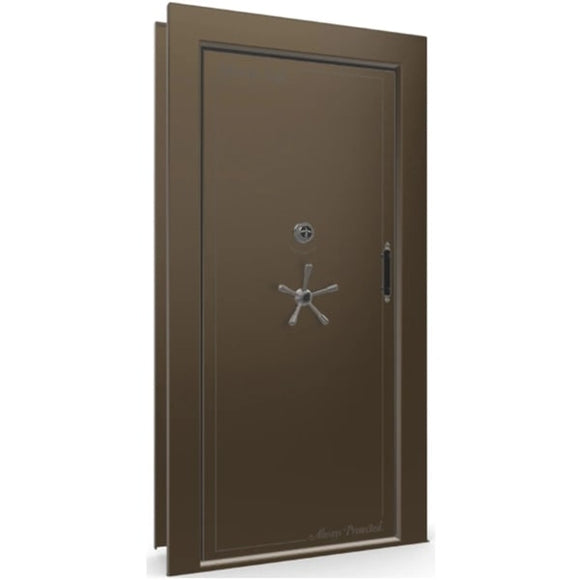

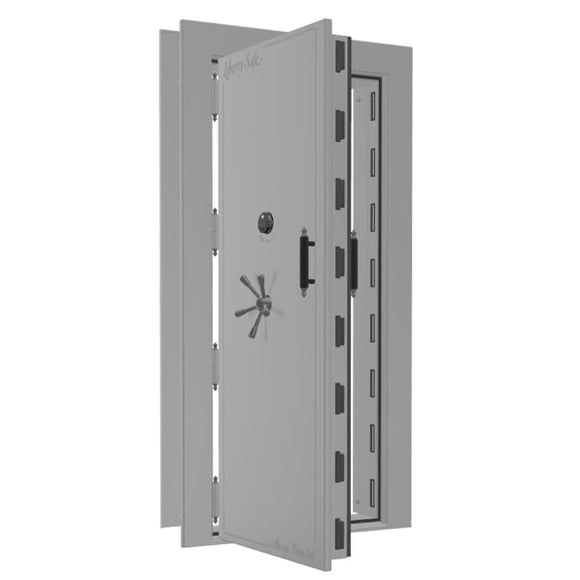

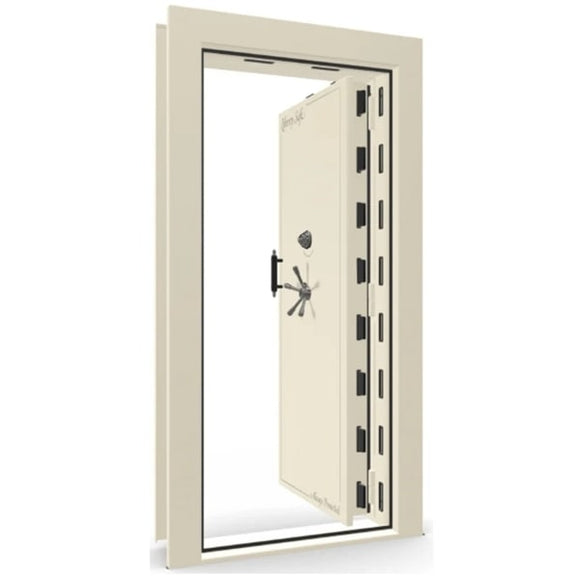

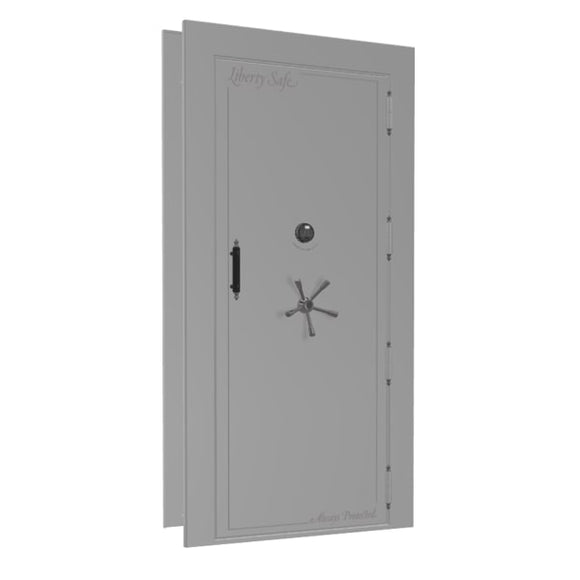

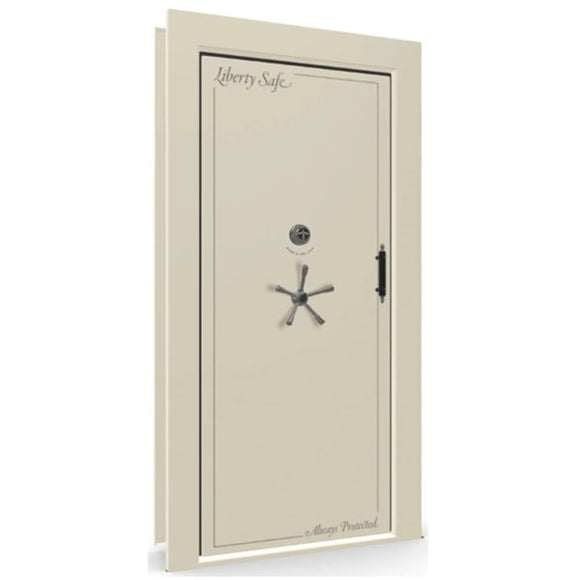

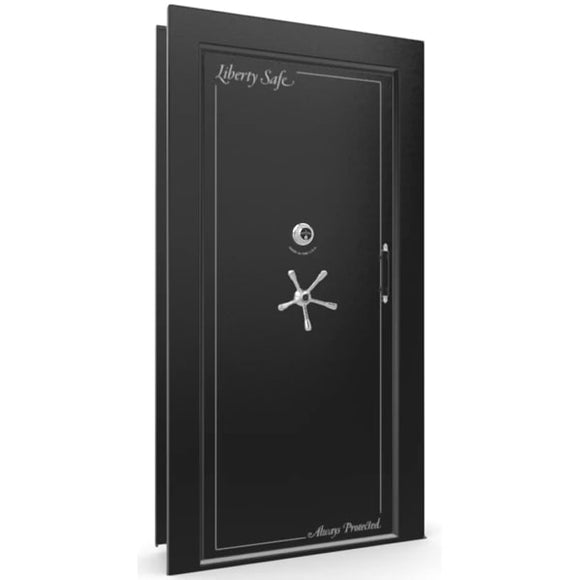

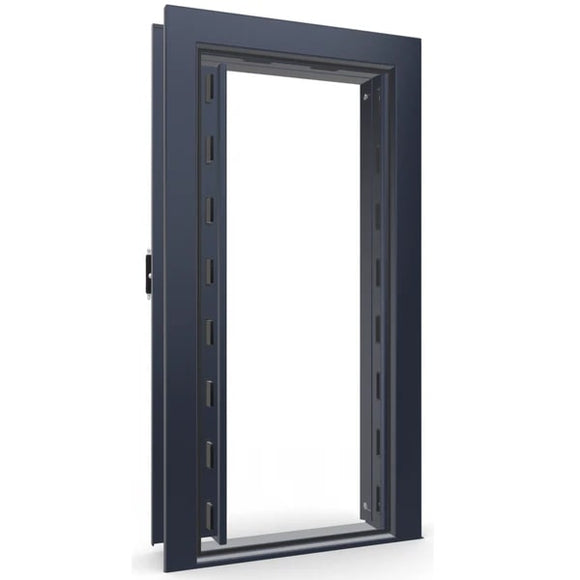

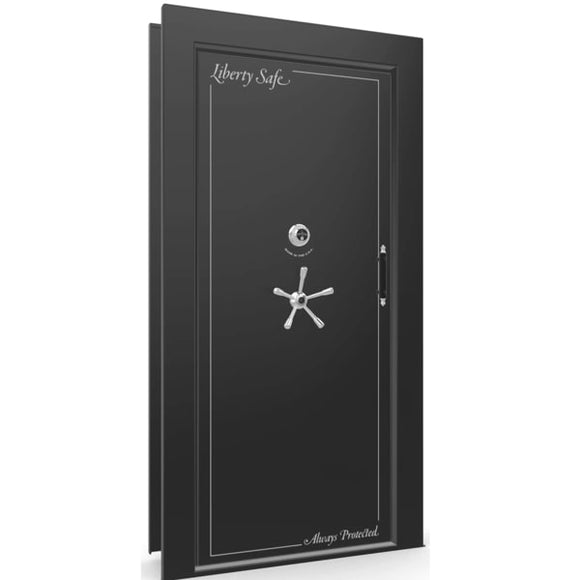

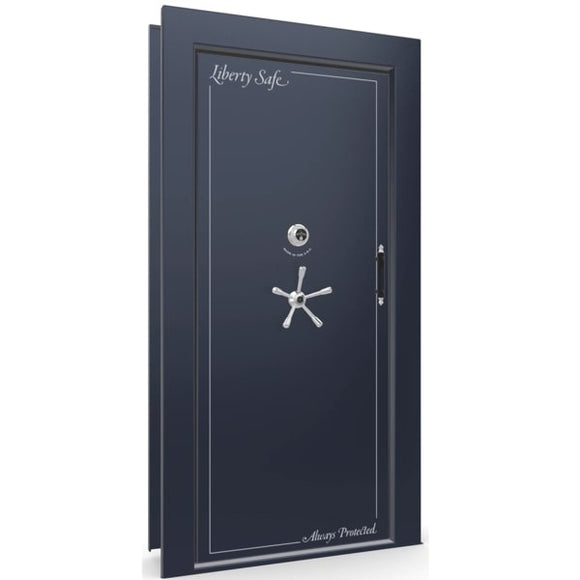

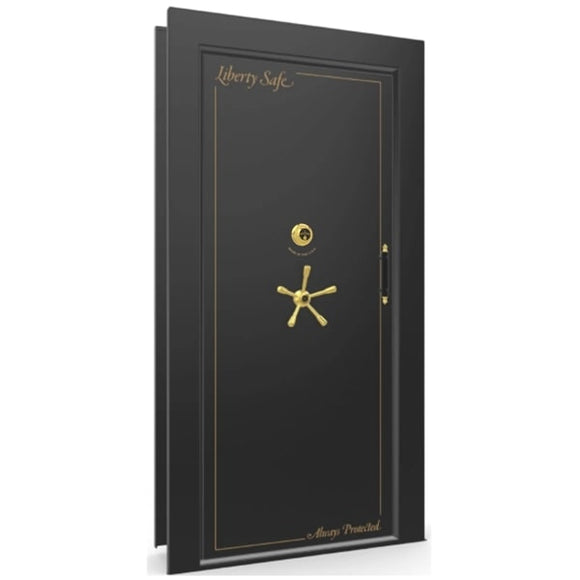

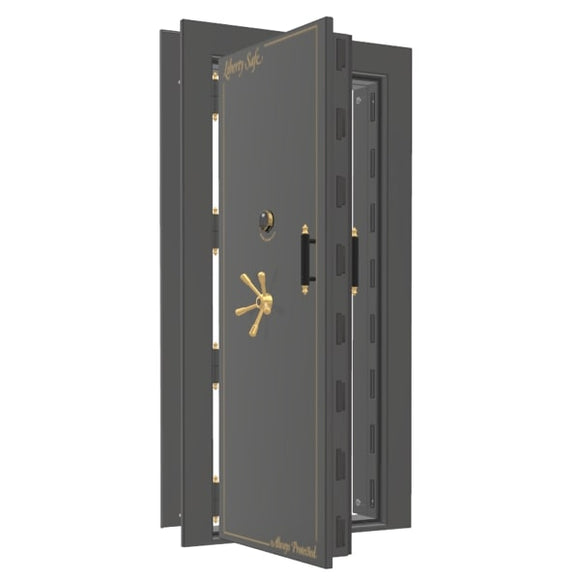

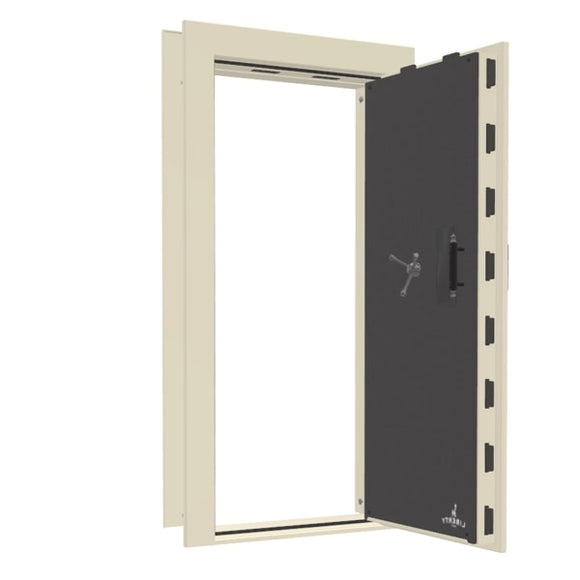

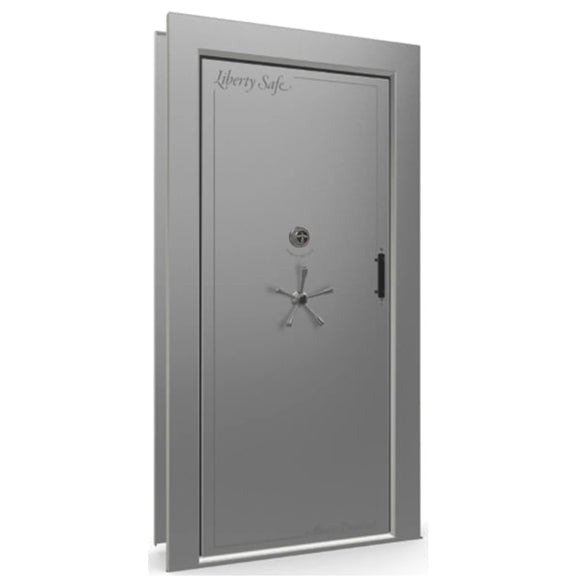

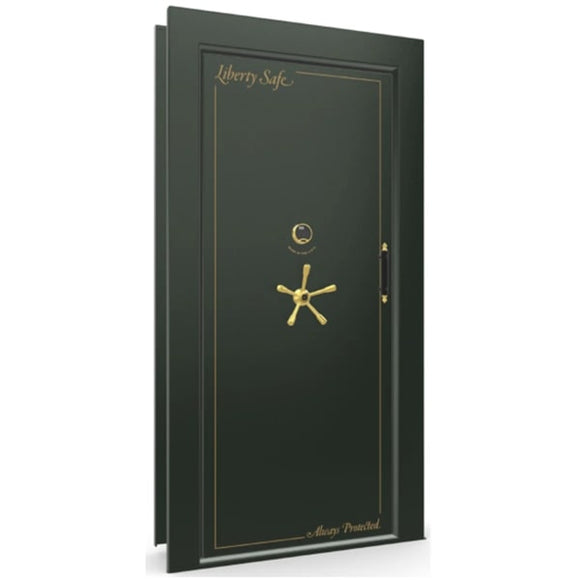

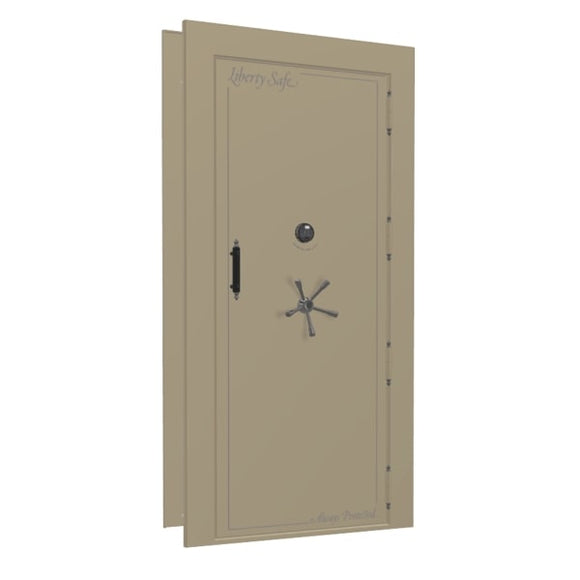

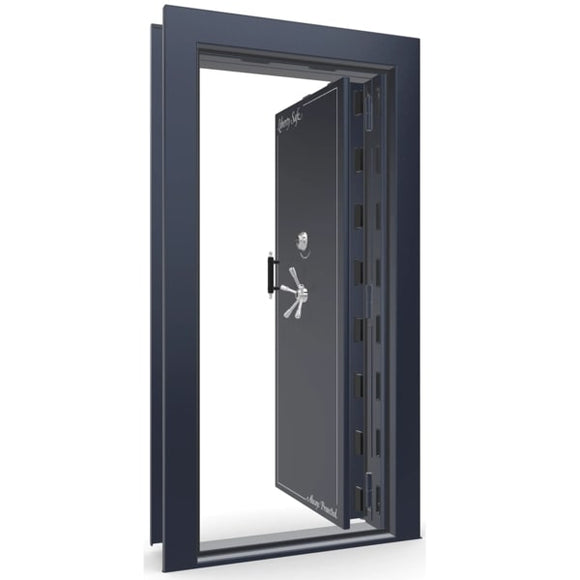

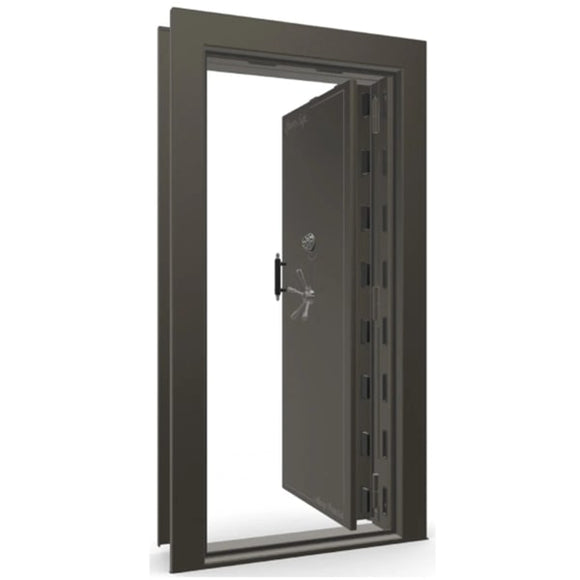

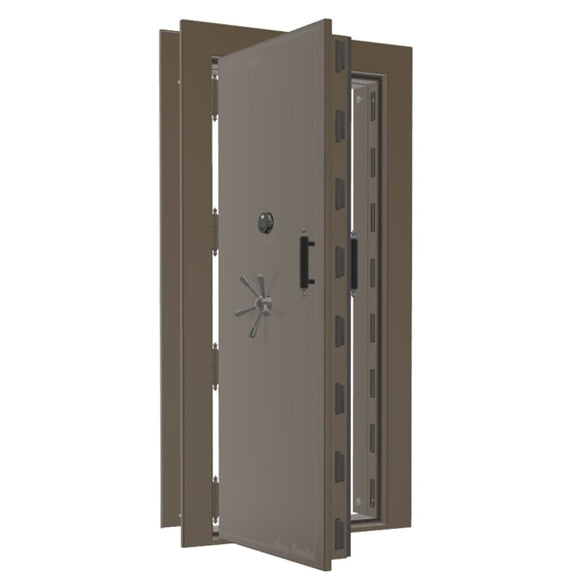

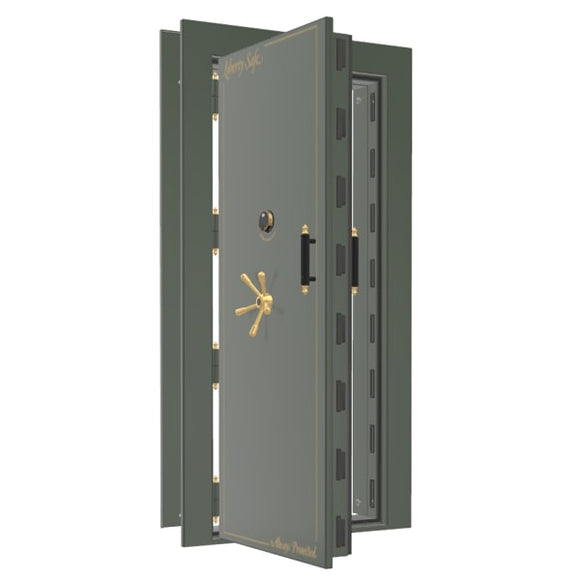

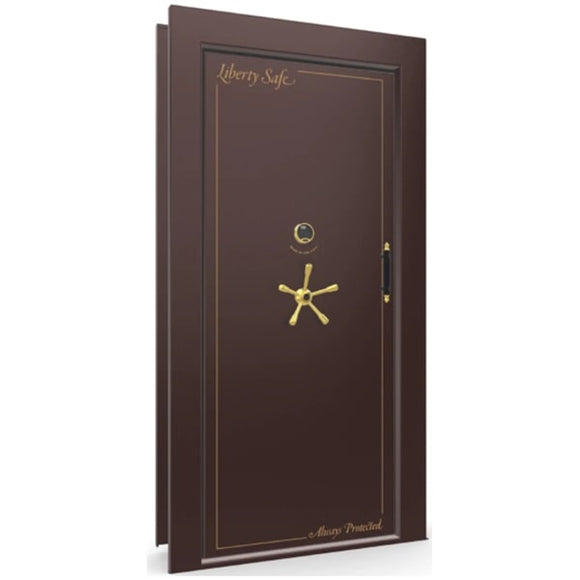

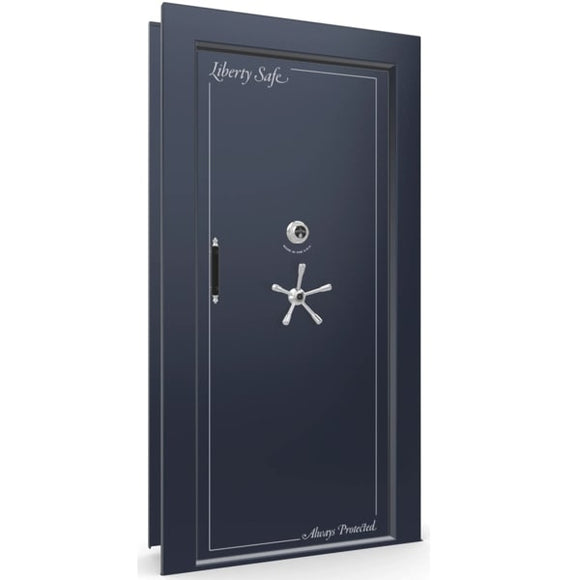

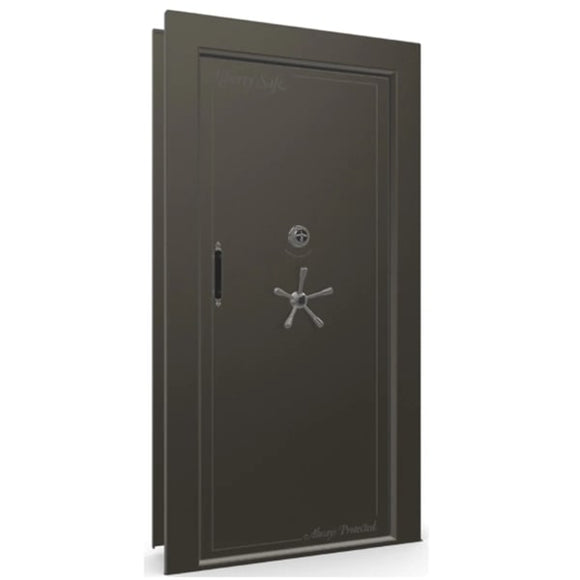

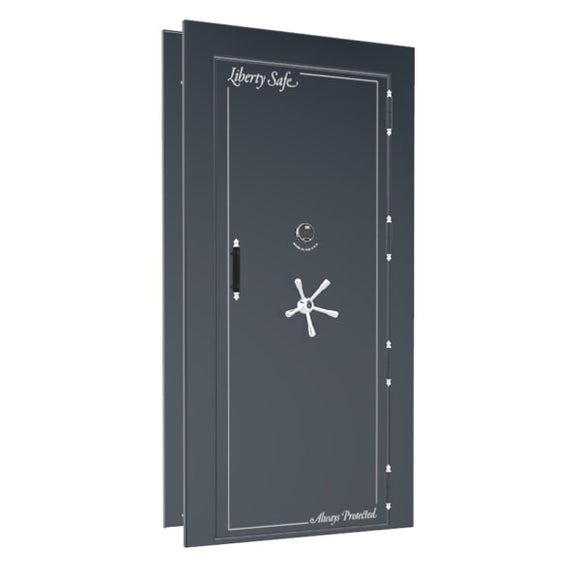

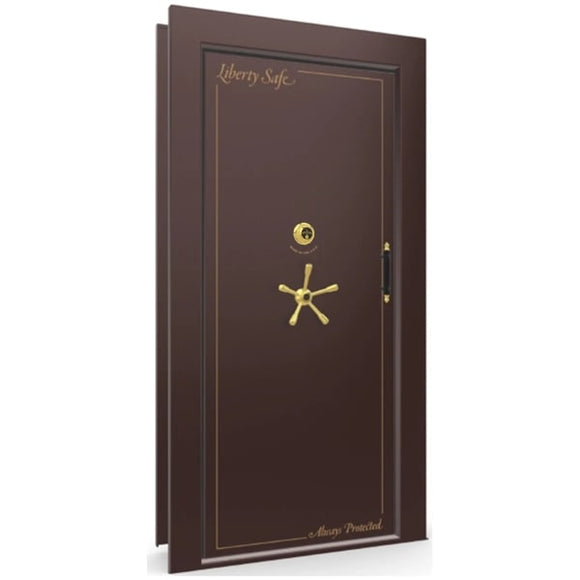

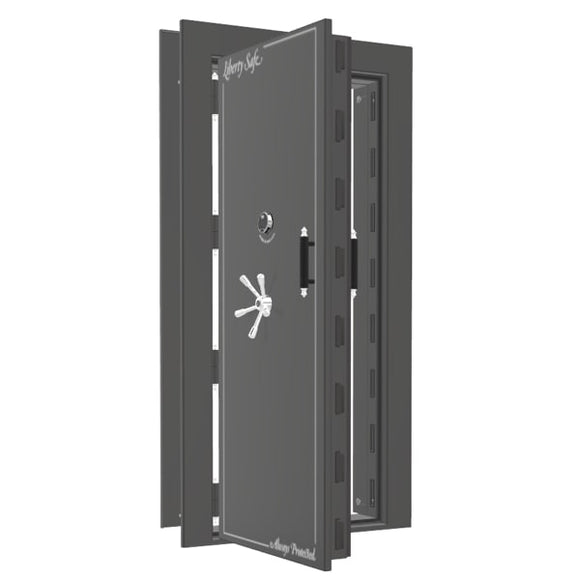

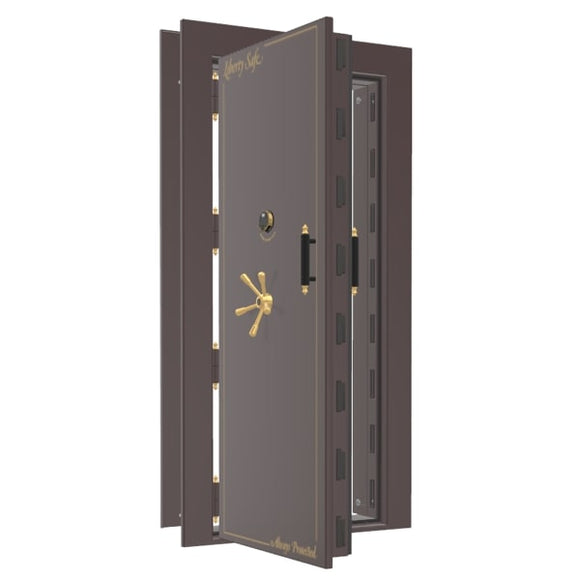

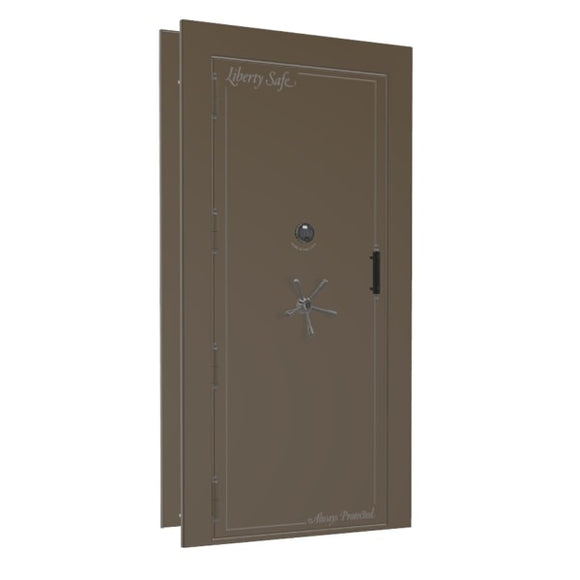

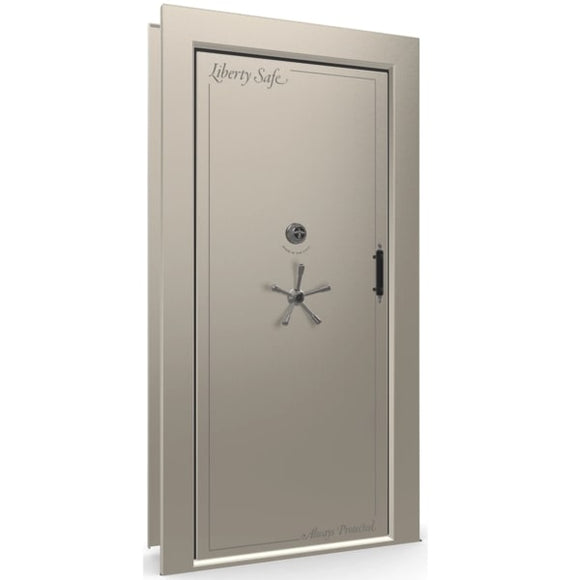

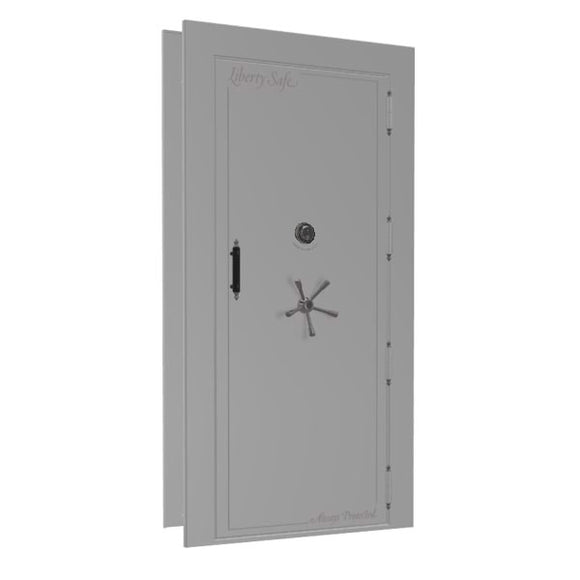

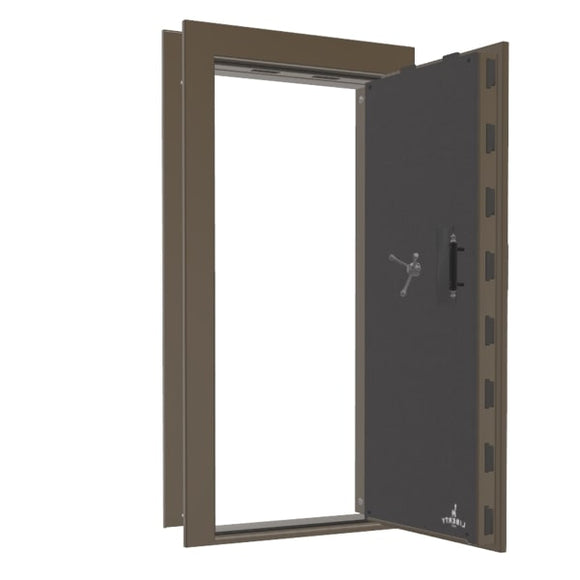

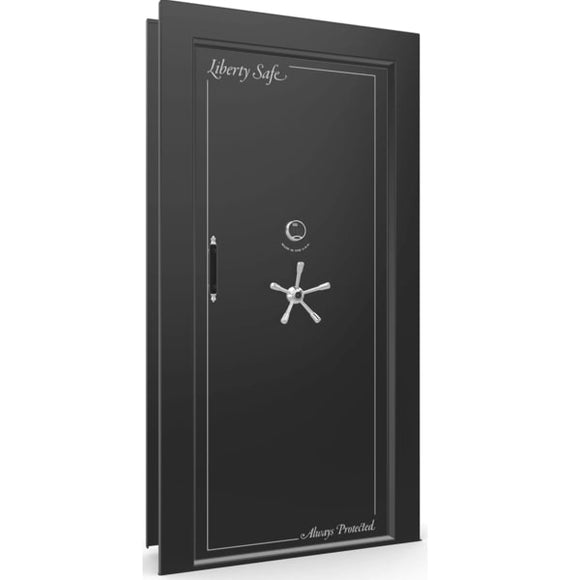

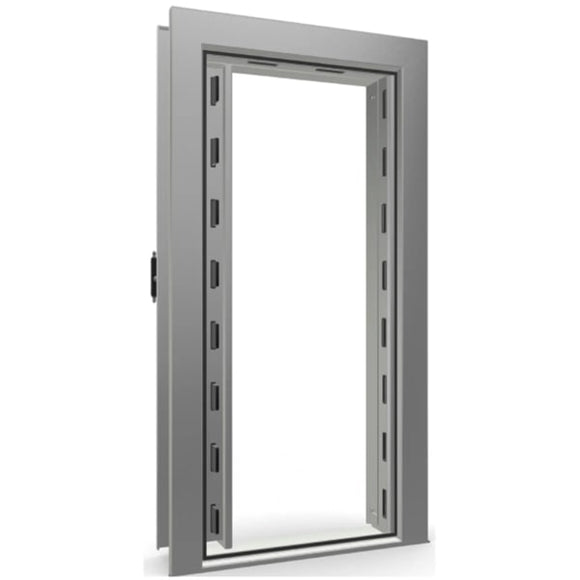

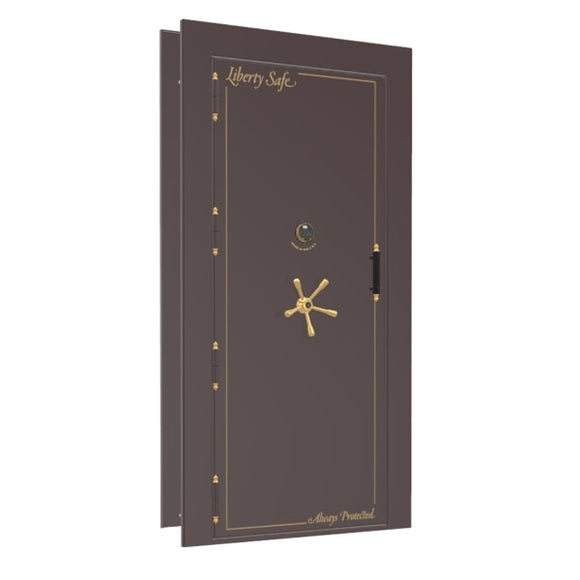

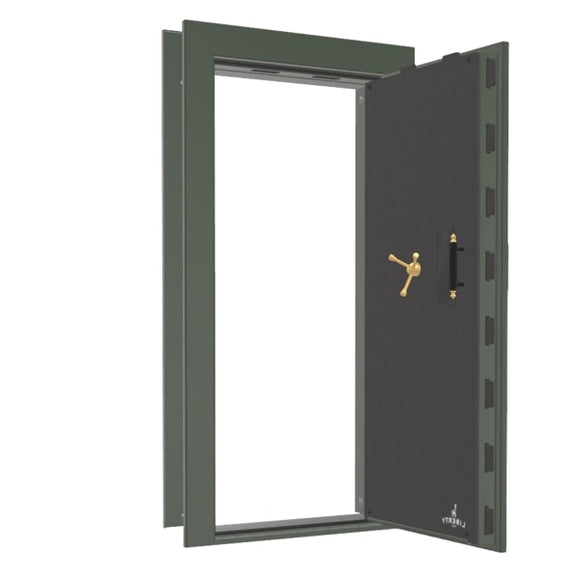

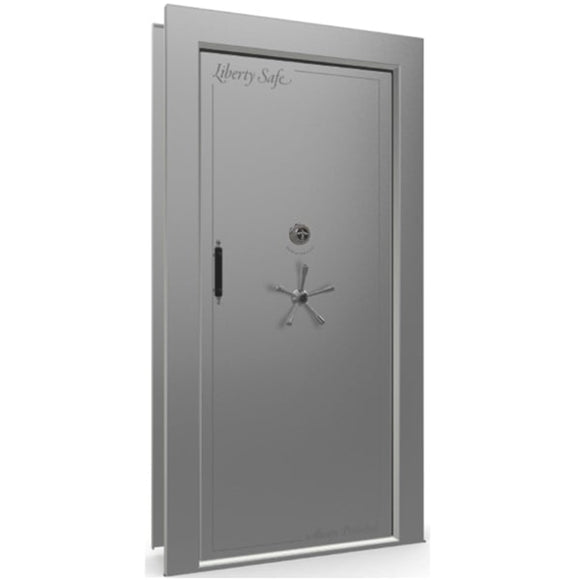

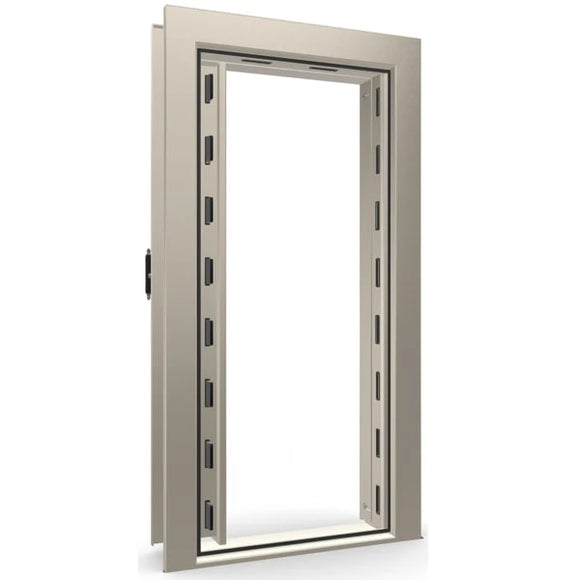

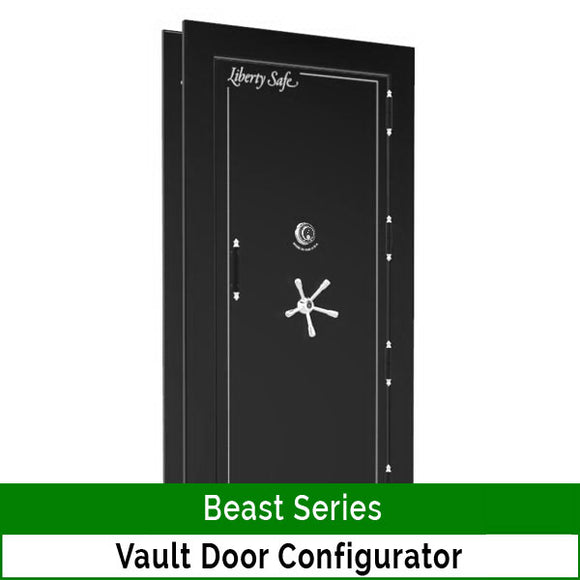

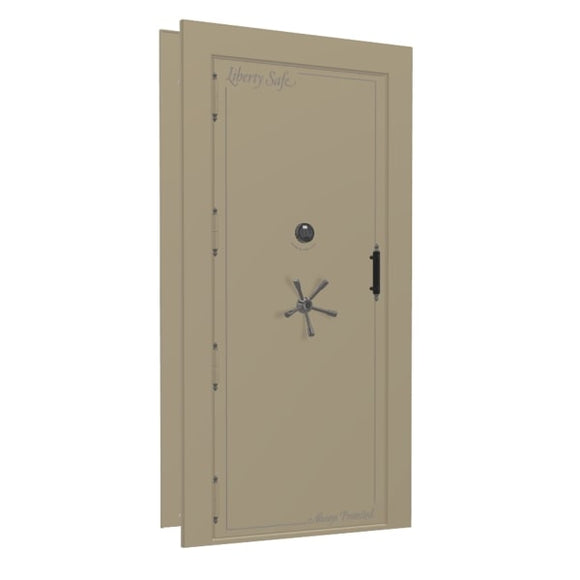

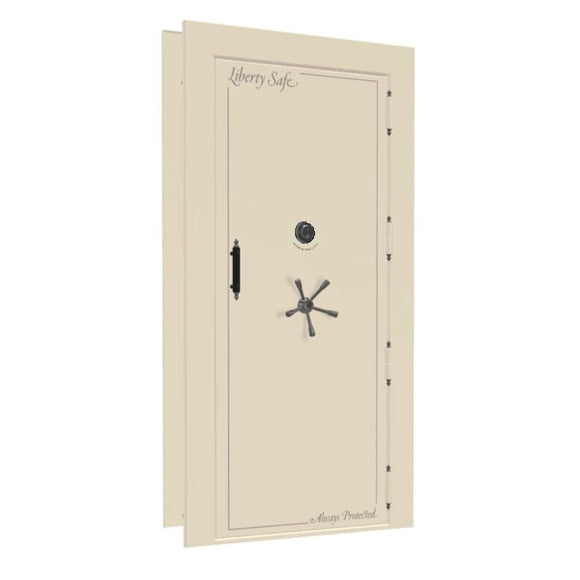

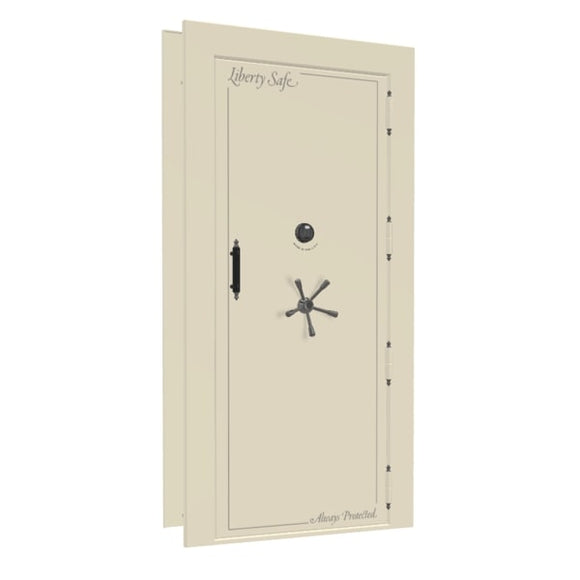

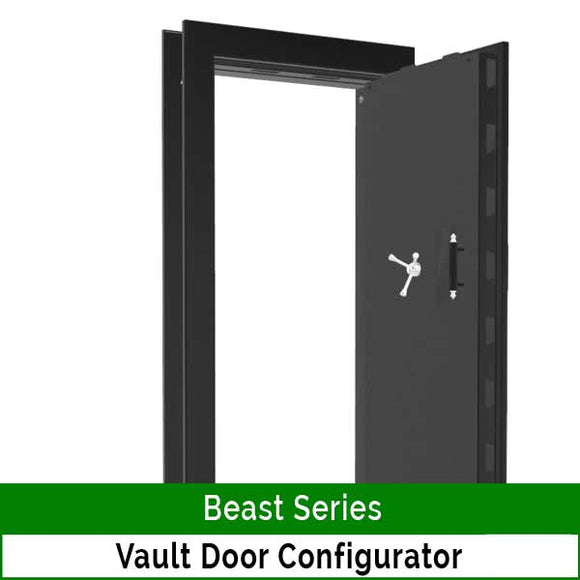

Utilizing Liberty Vault Door Configurator, you can make a door for your panic room yourself. It offers a wide variety of hardware, fabric, and color options to choose the most attractive interior for your door. You can also select the door style, size, and locking mechanism. Needless to say, all Liberty vault doors for sale are of top quality and equipped with lockout mechanisms, dual relockers, superb strong locking bars, and other security features. All the doors are built with palusol heat-activated door seal to protect the room from heat and smoke to get inside. Some models offer a significant level of fire protection as well.
| Vault Door | Vault Door | Vault Door Blockade | |
|---|---|---|---|
| Model | VAULT DOOR – OUTSWING | VAULT DOOR – INSWING | VAULT DOOR | BLOCKADE – INSWING |
| # of Locking Bars | 18 | 18 | 6 |
| Locking Bar Thickness | 1/2" | 1/2" | 1/4" |
| Door Dimensions | 79” x 34” | 77” x 30.5” | 78.5” x 29.5” |
| Walkthrough Clearance | If door is opened 90°, clearance is 27”; if opened 180°, clearance is 32” | Door opens to 90°, giving you a clearance of 26.5” | Door opens to 90°‚ giving you a clearance of 29.5” |
| Threshold Height | 1.875” | 1.875” | 1.875” |
| Rough Opening Requirement | 81”-85” H x 37”-42” W x 7”-10” D | 82.5”-85” H x 39”-42” W x 7”-9” D | For clamshell installation: 82”-85” H x 38”-42” W x 7”-9” D; For bolt-in installation: 82”-85” H x 38”-42” W x 5” or greater D |
| Hinge Options | Both left-hand swing and right-hand swing available | Both left-hand swing and right-hand swing available | Both left-hand swing and right-hand swing available |
| Weight | 1,245 lbs. | 1,245 lbs. | 665 lbs. |
MEASUREMENTS: Measurements and dimensions are + or - 1/8" to all measurements for manufacturing variances.
Made in the U.S.A. from U.S. and Global Parts.
